Usage
• 30mm width sandpaper
• Smooth sanding with high quality #40, #100
• Detail & Sculpting Performance
• Sanding Flat, Corners and radii Shape
• Two hands Grip
Angle grinder is not included
Please check your "Spindle size" and "angle grinder".

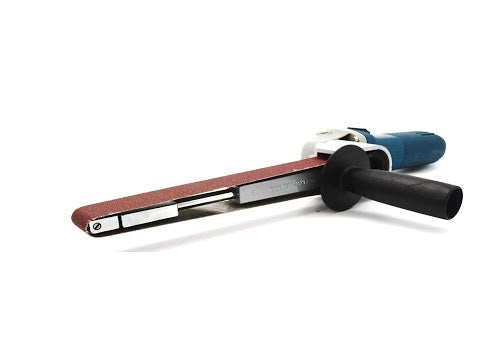

Model : Belt Sander (MP21-14)
Max. Diameter : 30 mm
Max Length : 300 mm
Max. RPM : 26,400 rpm @extension Spindle
Disc Bore Size : M10, M14, 5/8”-11(option)
Sandpaper Width : 30 mm
Sandpaper Hardness : #40, #100
M10 : Fit to Bosch, Makita
M14 : Fit to Bosch : 1375A, GWS8-45, GWS9-45
Makita : GA4030K, GA4530K, 9557NB, 9556NB
5/8"-11 : Fit to Bosch : 1375A, GWS8-45, GWS9-45
Makita : GA4030K, GA4530K, 9557NB, 9556NB
Usage and Safety Precautions
- Please read and follow all safety instructions carefully. Please keep the manual for future reference.
- When operating, always wear safety equipment such as face masks and safety goggles.
- Always secure the workpiece securely when working.
- Make sure that the grinder switch is off before plugging in the power cord.
- Be careful not to touch the cutter blade. Serious injury may result.
- Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.
- When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.
- After operation, turn off the switch and set it down when The remaining rotation stops completely.
- Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.
- Please remove the stone, sand and other material beforehand to use. If not, you may get blade damage.
- Please read and follow all safety instructions carefully. Please keep the manual for future reference.
- When operating, always wear safety equipment such as face masks and safety goggles.
- Always secure the workpiece securely when working.
- Make sure that the grinder switch is off before plugging in the power cord.
- Be careful not to touch the cutter blade. Serious injury may result.
- Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.
- When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.
- After operation, turn off the switch and set it down when The remaining rotation stops completely.
- Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.
- Please remove the stone, sand and other material beforehand to use. If not, you may get blade damage.
Maintenance and inspection
- Inspect and tighten the bolts of each part before operation.
- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.
- If the cutter blade or belt is worn out, replace it with a new one.
Quality display
- Manufacturer : MANPA corporation.
- Country of manufacture : Made in the Republic of korea.
- Address : Manpa corporation, 700-20 manseo-ro, Yangseong-myeon, Anseong-si, Gyeonggi-do
