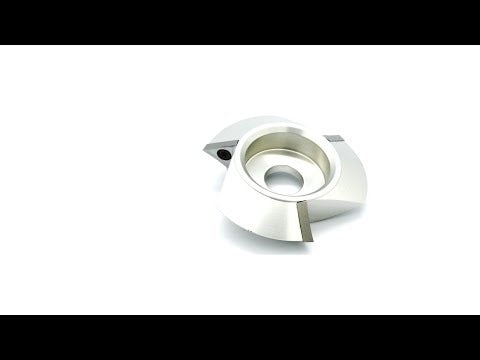

3” Triangle Cutter (MP21-6)

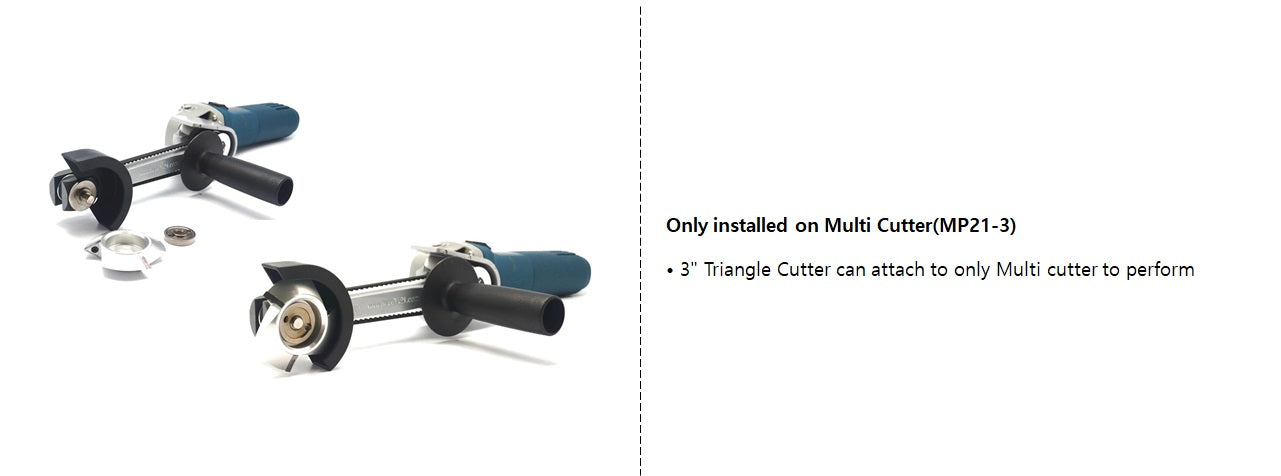

• Power Carving Performance with Only 3" Multi Cutter Series

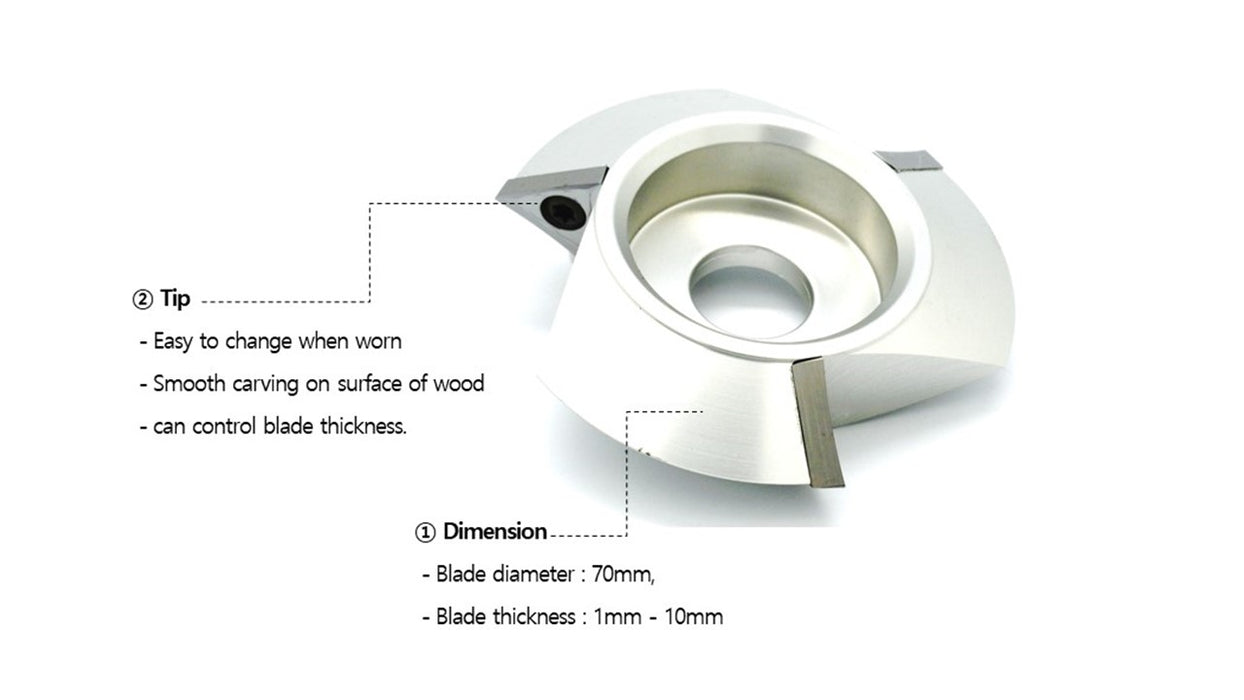

• Smooth Carving out with Triangle V type 16mm Carbide (Replaceable)
• Multi Function and direction is available
• Detail & Sculpting Performance

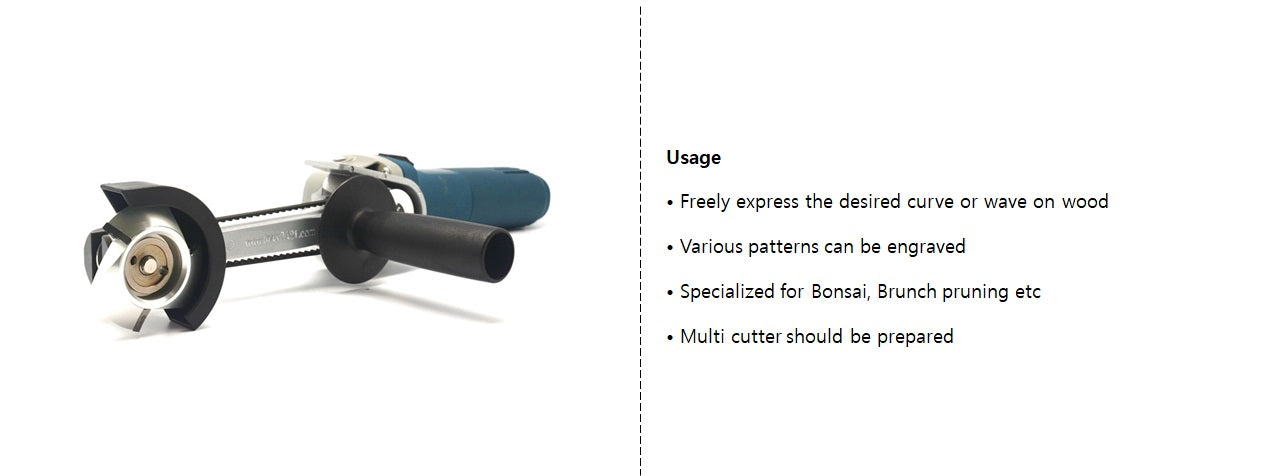

• Perfect for Power carving, Texture and Chainsaw carving furs

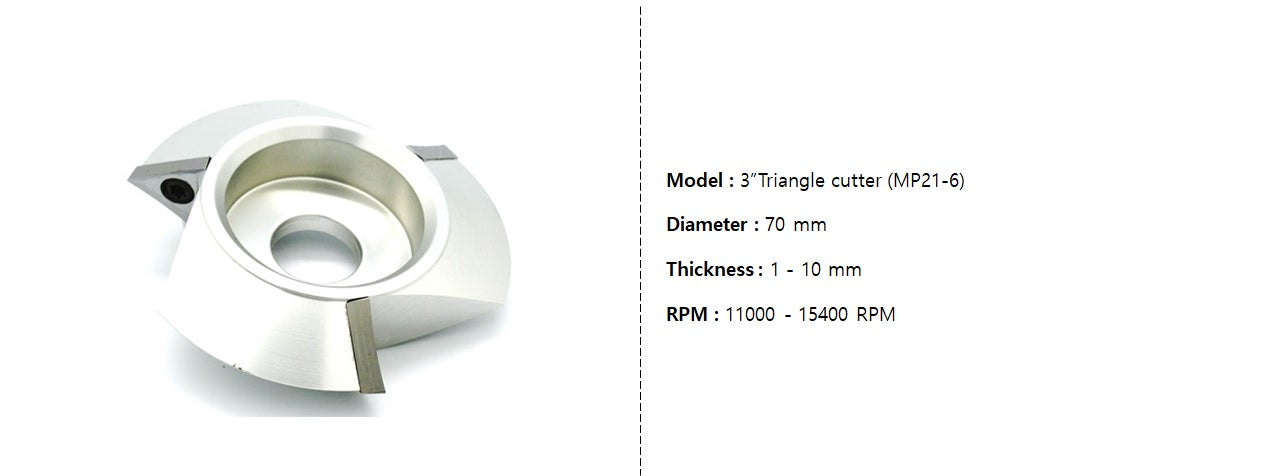

Model : 3” Triangle Cutter (MP21-6) Max. Blade Diameter : 70 mm Max. Working Depth : 20 mm Max. RPM : 15,000 rpm Disc Bore Size : 16.03 mm Blade Width : 1 - 10 mm Number of Teeth : 3 E
- Please read and follow all safety instructions carefully. Please keep the manual for future reference.
- When operating, always wear safety equipment such as face masks and safety goggles.
- Always secure the workpiece securely when working.
- Make sure that the grinder switch is off before plugging in the power cord.
- Be careful not to touch the cutter blade. Serious injury may result.
- Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.
- When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.
- After operation, turn off the switch and set it down when The remaining rotation stops completely.
- Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.
- Please remove the stone, sand and other material beforehand to use. If not, you may get blade damage.
Maintenance and inspection
- Inspect and tighten the bolts of each part before operation.
- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.
- If the cutter blade or belt is worn out, replace it with a new one.
- Manufacturer : MANPA corporation.
- Country of manufacture : Made in the Republic of korea.
- Address : Manpa corporation, 700-20 manseo-ro, Yangseong-myeon, Anseong-si, Gyeonggi-do
