Cannon 24 Inch DuraLite,CSB-S1-24-63-DL-3 - DuraLite, Replaceable Sprocket Tip, Stihl S1 Mount, 24 Inches, .063 Gauge, 3/8 Pitch, 84 Drive Links


Fits the following chainsaws:


038, MS380, MS381, 044, MS440, MS441,046, MS460, MS461 MS462, 048,
MS500i, 064, MS650, 066, MS660, MS661
With the CBW-20030 S1 to H1 Adapater Plate it will fit the following Husqvarna chainsaws, but take in mind you will have to upgrade the chain to a .063 Gauge Chain.


66, 70, 77, 160, 162, 163, 180, 181, 185, 260, 263, 266, 268, 272, 280, 281, 285, 288, 298, 365, 365XP, 371, 372XP, 380, 385XP, 390XP, 394XP, 395XP, 562XP, 565, 572XP, 575XP, 576XP, 3120XP


CSB-S1-24-63-DL-3 - DuraLite, Replaceable Sprocket Tip, S1 Mount, 24 Inches, .050 Gauge, 3/8 Pitch, 84 Drive Links

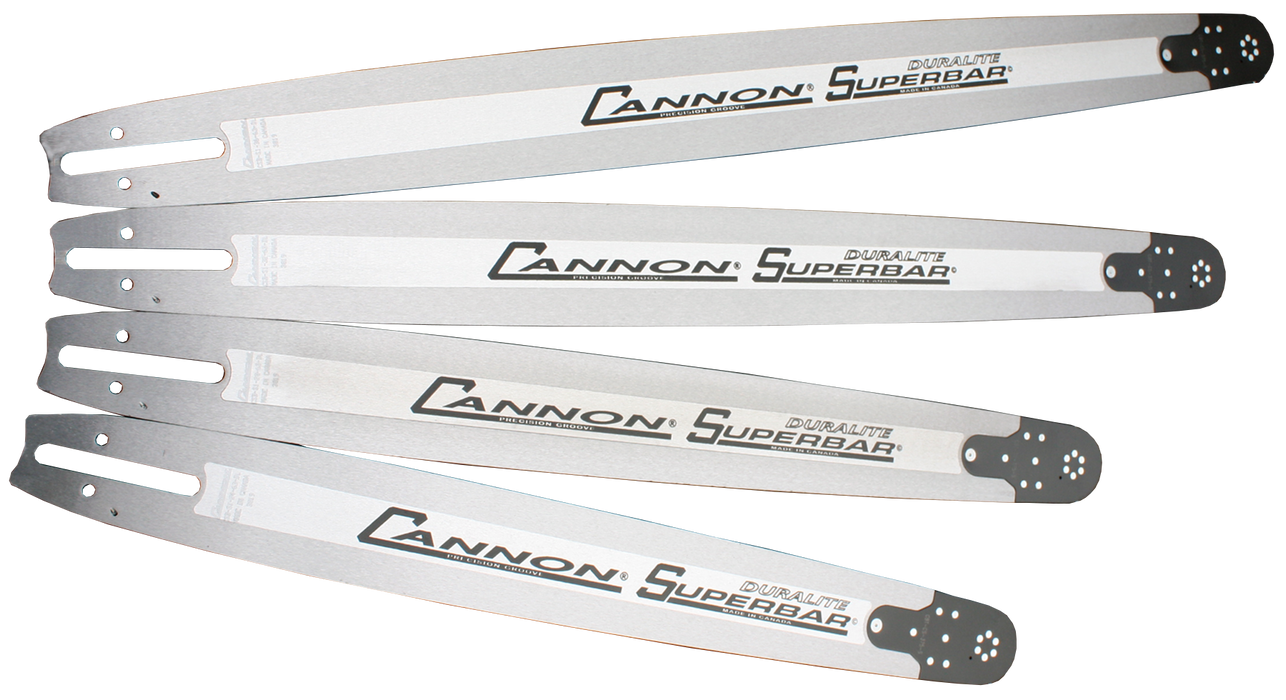

Cannon DuraLite SuperBar

Our First Light-Weight Chainsaw Bar

The Cannon DuraLite SuperBar is currently available in lengths of 24", 28", 32", and 36", all in our "S1" mount pattern, which has a 12.1 mm bar stud slot and fits directly onto most Stihl chainsaws. Cannon has adaptor plates to fit this bar on most other makes and models of chainsaws. Please use our Bar Finder to find the correct bar and adaptor plate part numbers for your chainsaw.

Cannon Bar Works is excited to announce the all new Cannon DuraLite SuperBar – our first light-weight chainsaw bar. This bar combines the professional quality of our traditional Cannon SuperBar with the weight reduction that the industry has been demanding.


The new Cannon DuraLite SuperBar is made from a virtually completed SuperBar. After the bar has been grooved and the rails have been flame hardened, we eliminate weight by milling out pockets on either side of the SuperBar, leaving a steel core in the center for strength. The center section is then perforated with holes. This method of construction is based on the same principal that one would see in an I-beam.

We then use a special adhesive which not only bonds the steel to two flexible aluminum inserts, one on each side of the bar, but also creates a chemical bond or weld between the two inserts. The new DuraLite SuperBar remains ridged and durable, has the same quality characteristics as the traditional SuperBar, but weighs up to 25% less.
