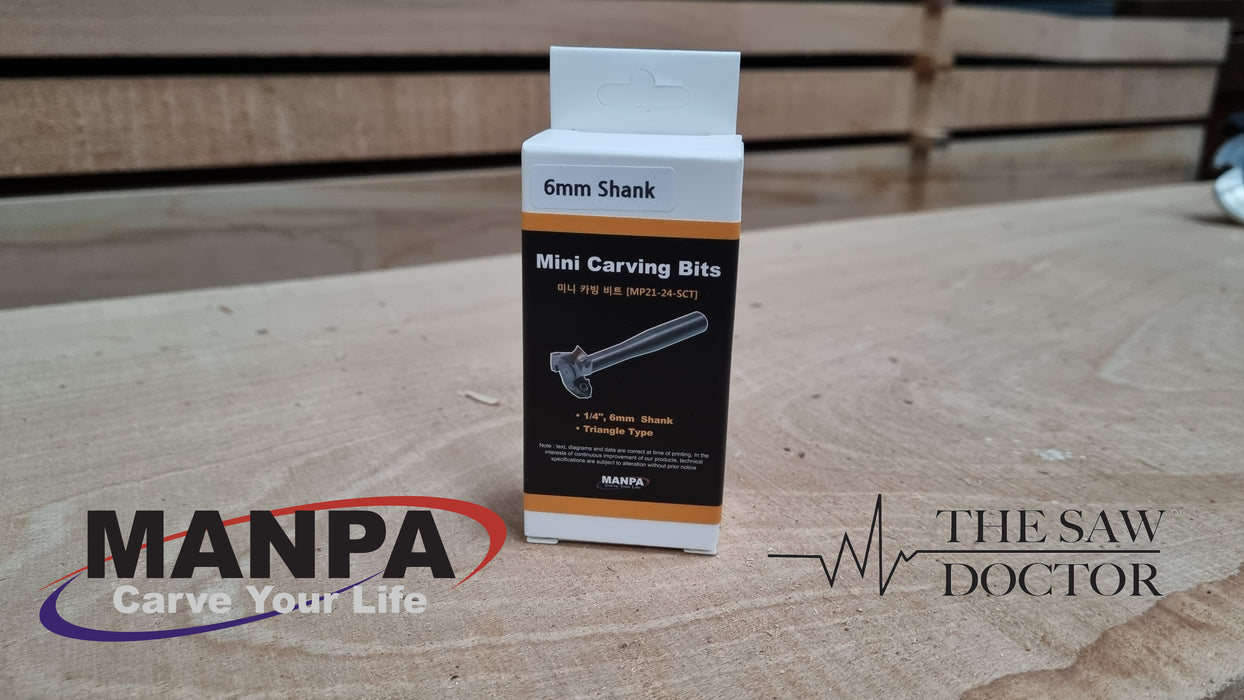

Mini Carving Bits - SCT MP21-24-SCT

€62.00
Usage
• Mini Carving Bits - Triangle Type (1/4" or 6mm Shank) ​
• Smooth & Power Carving with Sharp Cutter 5mm (Replaceable)
• Detail & Sculpting Performance
• Specialized for Textures
Specifications
Model : MP21-24-SCT

Max. Blade Diameter : 16 mm

Max. Carving Depth : 32 mm

Max. RPM : 25,000 rpm
Power : 90 - 750 Watt

Shank Size : 1/4" or 6mm Shank

Weight : 0.1kg

Overall Length : 55 mm
Blade Type : Triangle

Blade Width : 5 mm

Number of Teeth : 3 EA
Usage and Safety Precautions

 - Please read and follow all safety instructions carefully. Please keep the manual for future reference.

 -  When operating, always wear safety equipment such as face masks and safety goggles.

 - Always secure the workpiece securely when working.

 - Make sure that the grinder switch is off before plugging in the power cord.

 - Be careful not to touch the cutter blade. Serious injury may result.

 - Always operate the tool with both hands firmly gripped, and never leave the tool with rotation.

 - When using the tool, always use 220V without speed adjustment so that the speed does not fall below 11000RPM.

 - After operation, turn off the switch and set it down when The remaining rotation stops completely.

 - Please be sure to use it carefully because it may cause the rotation reaction(kick back) depending on the direction of rotation.

 - Please remove the stone, sand and other material beforehand to use. If not, you may get blade damage.

Maintenance and inspection

​- Inspect and tighten the bolts of each part before operation.

- After working, please keep clean so that there is no foreign matter such as dust, sawdust and rosin.

​- If the cutter blade or belt is worn out, replace it with a new one.

Quality display

- Manufacturer : MANPA corporation.

- Country of manufacture : Made in the Republic of korea.

- Address : Manpa corporation, 700-20 manseo-ro, Yangseong-myeon, Anseong-si, Gyeonggi-do
