Cannon 28 Inch DuraLite, CSB-S1-28-63-DL-3 - DuraLite, Replaceable Sprocket Tip, Stihl S1 Mount, 28 Inches, .063 Gauge, 3/8 Pitch, 91 Drive Links
Fits the following chainsaws:
66, 70, 77, 160, 162, 163, 180, 181, 185, 260, 263, 266, 268, 272, 280, 281, 285, 288, 298, 365, 365XP, 371, 372XP, 380, 385XP, 390XP, 394XP, 395XP, 562XP, 565, 572XP, 575XP, 576XP, 3120xp
CSB-S1-28-63-DL-3 - DuraLite, Replaceable Sprocket Tip, S1 Mount, 28 Inches, .063 Gauge, 3/8 Pitch, 91 Drive Links

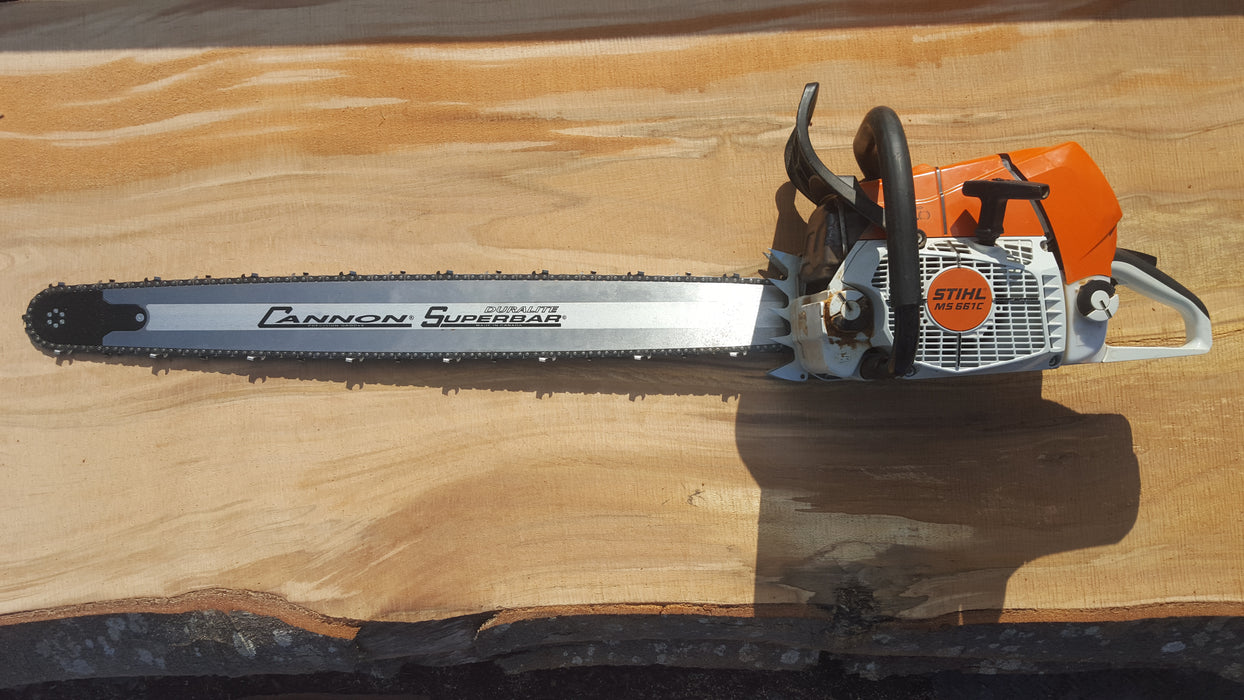

Cannon DuraLite SuperBar
Our First Light-Weight Chainsaw Bar
The Cannon DuraLite SuperBar is currently available in lengths of 24", 28", 32", and 36", all in our "S1" mount pattern, which has a 12.1 mm bar stud slot and fits directly onto most Stihl chainsaws. Cannon has adaptor plates to fit this bar on most other makes and models of chainsaws. Please use our Bar Finder to find the correct bar and adaptor plate part numbers for your chainsaw.
The new Cannon DuraLite SuperBar is made from a virtually completed SuperBar. After the bar has been grooved and the rails have been flame hardened, we eliminate weight by milling out pockets on either side of the SuperBar, leaving a steel core in the center for strength. The center section is then perforated with holes. This method of construction is based on the same principal that one would see in an I-beam.
We then use a special adhesive which not only bonds the steel to two flexible aluminum inserts, one on each side of the bar, but also creates a chemical bond or weld between the two inserts. The new DuraLite SuperBar remains ridged and durable, has the same quality characteristics as the traditional SuperBar, but weighs up to 25% less.
